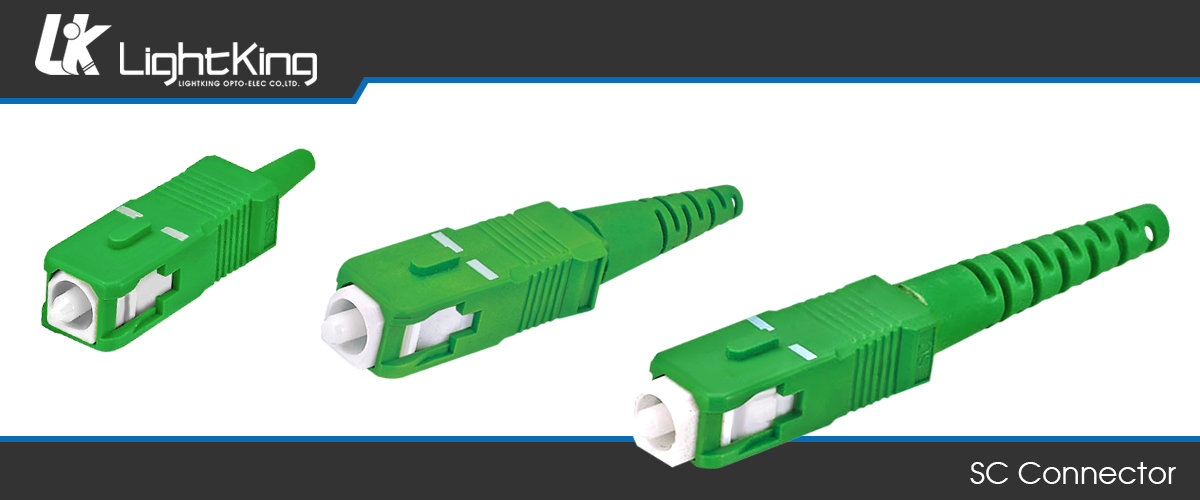

SC Connector

● Low insertion loss and back reflection loss.
● High Precision of Mechanical Dimensions.
● Compliant with Telcordia GR-326-Core, IEC, TIA.
● RoHS compliant.
● 100% Optic test.

Technical Specification
● Compliance Telcordia GR-326-CORE.
● Compliance IEC 61754-4 Sectional specification.
● The Reliability and Environment test is based on EIA/TIA455 Standard

Dust Cap Type Dust Cap Color Connector Type Connector Color Boot Type Boot Color Crimping Type
Standard Transparent PC 0.9mm SX Blue Standard Blue Standard ψ1.8
Full-Cover Blue PC 0.9mm DX Begie Short Boot Green Standard ψ2.0
DustCap with Chain Green APC 0.9mm SX Green   Black Standard ψ2.1
  Black APC 0.9mm DX Black   White Standard ψ2.8
  White PC 2.0/3.0mm SX Aqua   Gray Standard ψ3.0
  Gray PC 2.0/3.0mm DX Red   Red SC Crimp with Black Shrink Tube
  Red APC 2.0/3.0mm SX Magenta   Brown Teeth Crimp ψ1.7
  Brown APC 2.0/3.0mm DX White   Orange Teeth Crimp ψ2.0
  Orange       Pink Teeth Crimp ψ3.0
  Pink       Yellow
  Yellow       Aqua
  Aqua       Magenta
  Magenta       Beige
