MPO Micro Distribution Round Cable

Description
144 colored fibers can be divided into 12 unit cables.
Each unit has its own jacket and aramid yarn as round strength member.
The unit cables were around the central strength member(CSM).

Application
1. Used in indoor cabling.
2. Used as access building cable.
3. Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames.
4. Used in pigtails and patch cords.

Properties
1. Good mechanical and environmental characteristics.
2. Flame retardant characteristics meet the requirements of relevant standards.
3. The mechanical characteristics of jacket meet the requirements of relevant standards.
4. Soft, flexible, easy to lay and splice,and with big capacity data transmission.
5. Meet various requirements of market and clients.
6. Each individual unit cable consists of 12 fibers and has its own aramid yarn as strength member, high strength, good bending property, without gel inside, convenient for splicing and cabling.
7. Fiber count is 12-288 cores.
8. Color of out jacket varies according to the type of fibers inside; can also be other color upon request.
9. LSZH material for out jacket, can also be other materials upon request.

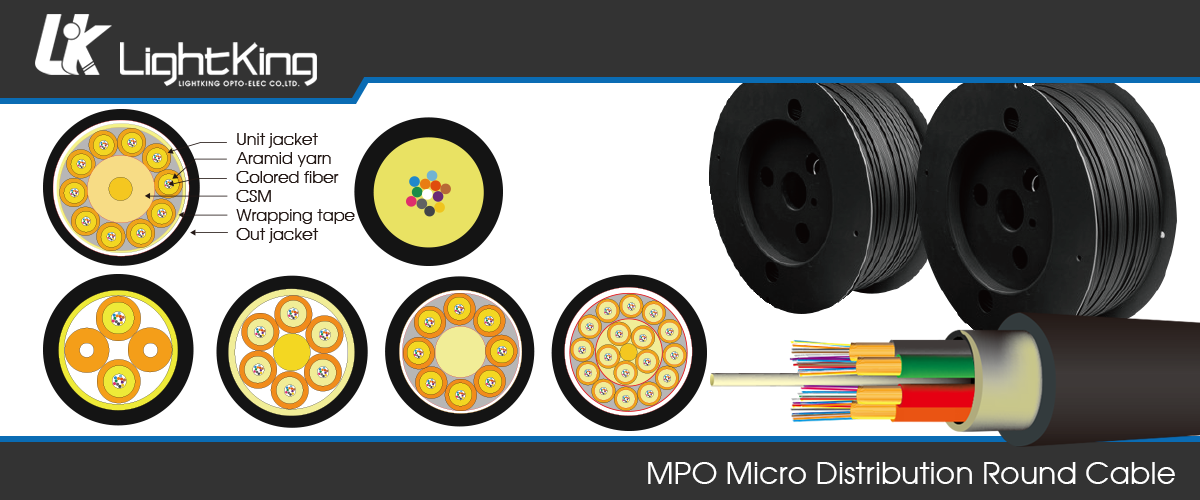

Cable Structure
Fiber Count 12 12 24 24 48 72 96 144
Outer Diameter(mm) 3.0±0.15 5.0±0.2 4.2±0.3x7.6±0.4 9.0±0.5 9.0±0.5 11.2±0.5 13.5±0.5 17.5±0.5
Nominal weight(kg/km) 7.8 15 31 72 79 126 178 285
Mechanical Properties and Environmental Properties
Max. Tensile Strength(N) Short-term 150 300 300 300 600 1000 1000 1000
Long-term 80 150 160 160 200 300 300 300
Min. Bending Radius(mm) Dynamic 30D 30D 30H 30D 30D 30D 30D 30D
Static 15D 15D 15H 15D 15D 15D 15D 15D
Max. Crush Resistance(N/100mm') Short-term 500 800 1000 1000 1000 1000 1000 1000
Long-term 150 200 300 300 300 300 300 300
Operating/Storage Temperature rang -20°C ~ +70°C
