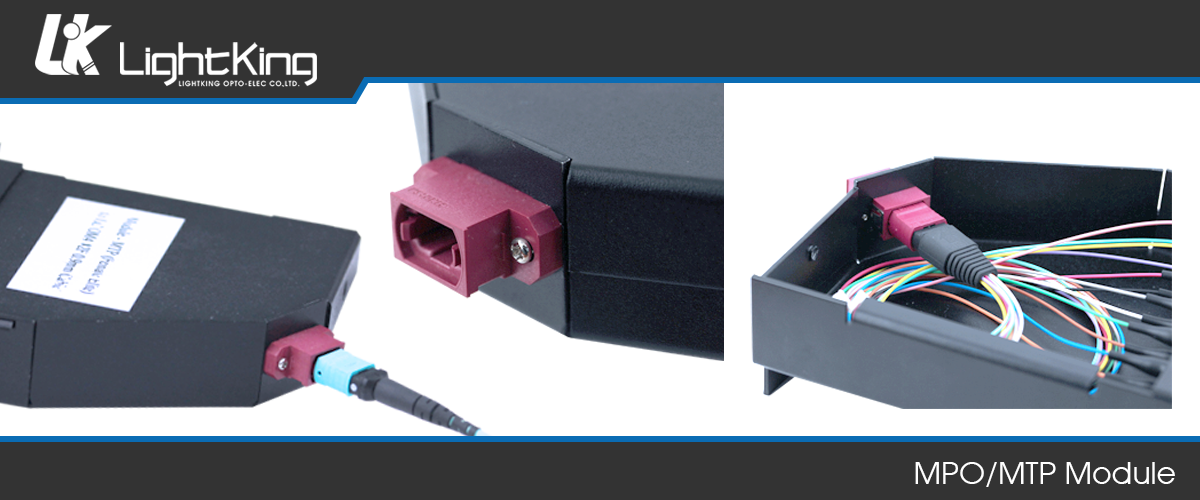

MPO/MTP Module

LIGHT KING OPTO-ELEC Co., Ltd.modules provide the interface between the MPO/MTP ® connector on the trunk and the LC duplex jumpers that will then connect directly into electronics.

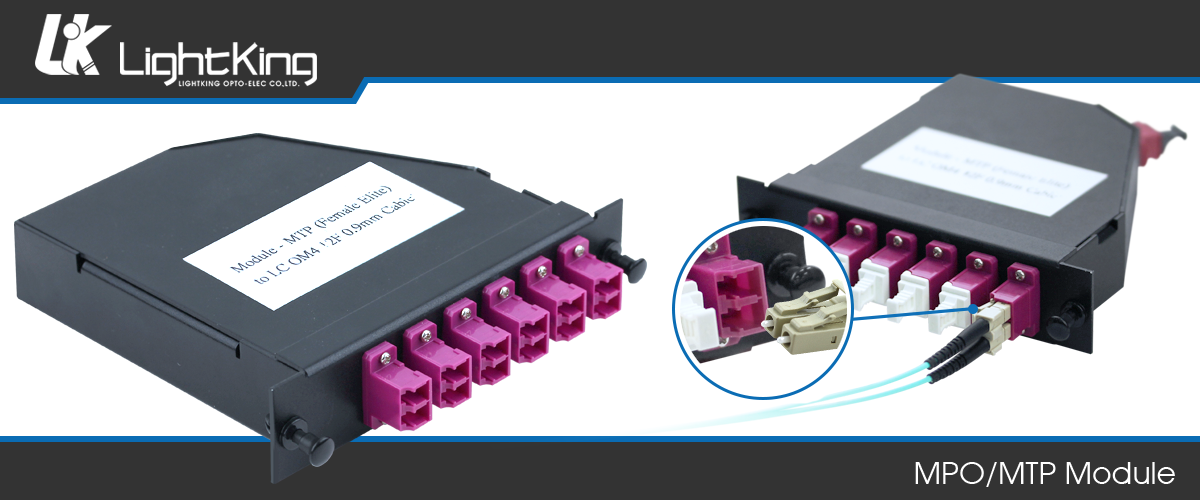

The LC Duplex Pin Adaptor feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted.

ITEM SPECIFICATION
MM MT Elite SM MT Elite
ROHS Compliance/Meet UL & Telecordia Testing Requirements
CABLE TYPE Bare Ribbon, Ribbon with ova / Jacket,Round Cable (3.0~5.5mm)
TYPE 4, 8, 12 and 24 fiber
I.L 0.25 dB Max(single fiber),
 0.1 dB typical(all fibers)
0.3 dB Max(single fiber),
 0.1 dB typical(all fibers)
R.L. ≥20dB ≥60dB(8 degree angle polish)
FERRULE MATERIAL PPS
OPERATING TEMPERATURE(°C) -20°C~+75°C
