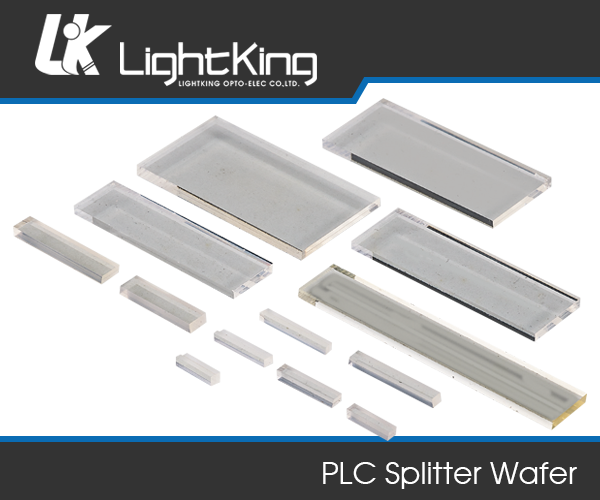

PLC Splitter Chip

Features
● Low Insertion Loss
● Low PDL
● Low uniformity
● Wide range of operating wavelengths

Application
● FTTH . FTTB . FTTC
● CATV networks
● Fiber optic equipments & systems
● PON system fiber

Premium grade
Parameter 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Insert Loss(dB) 3.5 6.7 9.8 13 16.2 19.5 3.8 7 10.2 13.5 17
Uniformity(dB) 0.5 0.5 0.6 0.7 1 1.5 0.9 1 1 1.5 1.5
PDL(dB) 0.15 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.25
Standard Grade
Parameter 1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8 2x16 2x32
Insert Loss(dB) 3.7 7 10.2 13.5 16.5 19.8 4.1 7.2 10.5 13.9 17.5
Uniformity(dB) 0.5 0.6 0.8 1 1.2 1.5 1.1 1.2 1.2 1.5 1.8
PDL(dB) 0.2 0.2 0.2 0.25 0.25 0.3 0.25 0.25 0.25 0.3 0.3
Core Pitch(um) 250 250 127 127 127 127 250 250 127 127 127
Dimension
(mm)
( L±0.5 x W±0.2
 x H±0.2 )		 8.5 x
 1.75 x 2		 9.0 x
2.25 x2		 9.5 x
 2.25 x 2		 13.5 x
2.55 x 2		 18.0 x
4.45 x 2		 25.0 x 9.25 x 2 12.5 x
 1.75 x 2		 15.7 x 2.25 x 2 15.8 x
 2.25 x 2		 19.0 x 2.55 x 2 22.5 x
4.45 x 2
Operating Wavelength 1260 nm ~ 1650 nm
Return Loss(dB) ≥50
Directivity(dB) ≥50
Operating Temperature(°C) -40°C ~ +85°C
Storage Temperature(°C) -40°C ~ +85°C
Operating Humidity(%) Max. 95% RH
Storage Humidity(%) Max. 95% RH
