Optiocal Property
Mpo fanout kits Minimization
MTP Patchcord Assembly
| LK Standard | IL Value | RL Value |
| Multi-Mode | <0.35 dB | ≧40 dB |
| Single Mode | <0.35 dB | ≧65 dB |

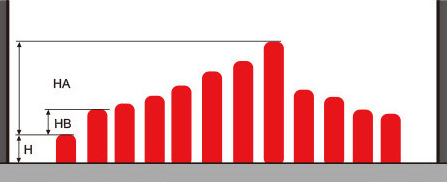

| Fiber Height | IEC Standard | LK Standard | ||
| Feature | Fiber Count:2,4,8,10,12 | |||
| Minimum | Maximum | Minumum | Maximum | |
| Fiber Height | 1µm | 3.5µm | 1.2µm | 2.4µm |
|
Fiber Height Variation Adjacent |
N/A | 0.3µm | N/A | 0.16µm |
|
Fiber Height Vaeiation Total |
N/A | 0.5µm | N/A | 0.3µm |

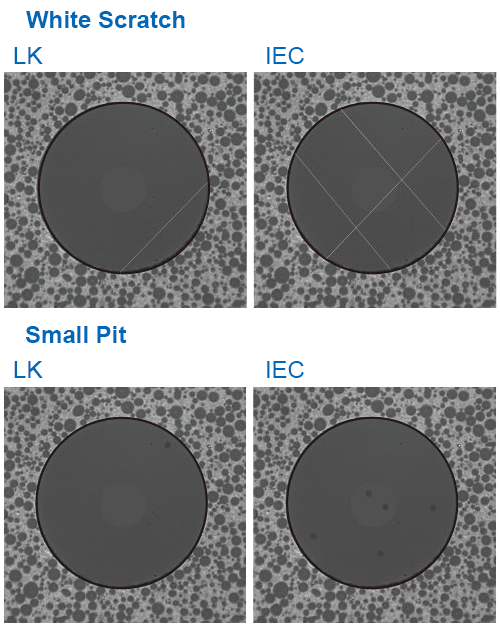

Fiber Visual Acceptance Criteria
Mapping 100% check (fibers sequence)
.png)

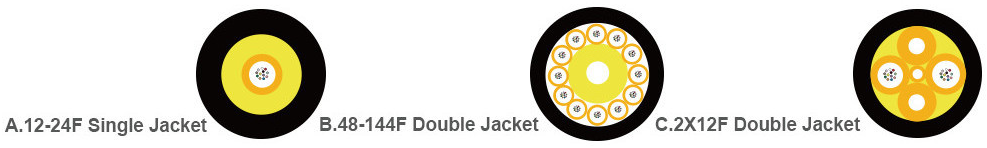

Cable Customization(12~144F available).png)

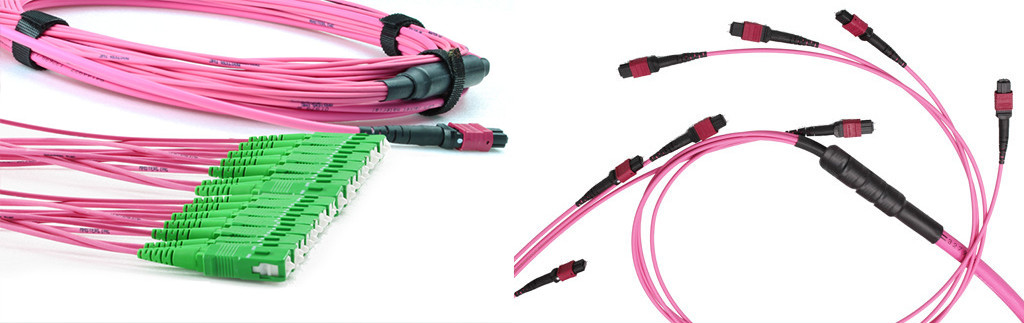

Multi-fiber trunk Cable Assembly From 24-144 fiber
